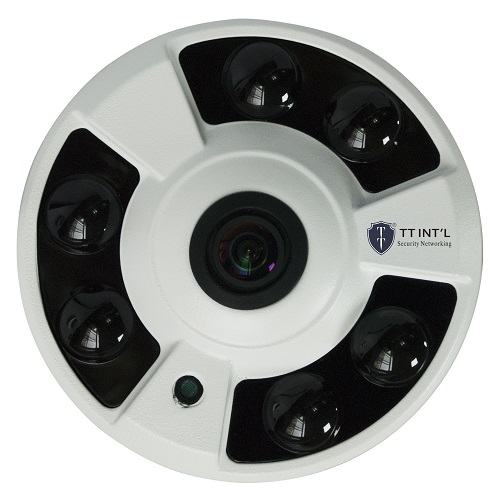

4 in 1 Fisheye Camera

Panaromic Fisheye Camera

Features:

4.0mp Fisheye Cameras

4 in 1 (AHD, TVI, CVI, CVBS)

Support Hikvision & Dahua’s DVRs.

Color CMOS HD Sensor

Built-in IR Cutter Filter

1.6mm fisheye Lens

with UTC/OSD Function

with HBLC, HDNR, Mask Function

Indoor use


Enquiry

Specifications Send Inquiry Related Products

Specifications:

Model

TT-FE4MHD


1/2.7” CMOS 4.0MP Sensor

Signal System

PAL/NTSC

Effective Pixels

4.0mp

Min. Illumination

0.01Lux

Lens

1.6mm   fisheye HD Lens

Day& Night

Auto Switch IR Cut Filter

IR Distance

10-15 Meter

UTC/OSD

Support UTC, with OSD Cable

Shutter Time

1/25 (1/30) s to 1/50,000 s

Video Frame Rate

1920×1080@25/30fps

HD Video Output

Analog HD Signal Output (AHD, CVI, TVI, CVBS 4   in 1 Signals)

CVBS Output

1Vp-p CVBS Output (75Ω/BNC)

Synchronization

Internal Synchronization

Wide Dynamic

120 dB

S/N Ratio

More than 50 dB

OSD/UTC Menu

Camera ID

On / Off (15 Characters,   Position Programmable)

Day/Night Mode

Color / BW / EXT

Auto White Balance

ATW / AWC-SET / Indoor / Outdoor / Manual

Private Mask

On/Off, Maximum 4 Zones

Motion Detection

On/Off, Maximum 4 Zones

BLC

On/Off

AGC

On/Off

AEC

AE/EL

WDR

WDR (On/Off)

Language

English / Japanese / Simplified traditional / Korean / German / French / Italia

Environment Mode

Indoor, Outdoor, Indoor1, Low-Light

Functions

Super WDR, HLC, 3DNR, Electronic Sensitivity, Mirror,   Defogging, Positive & Negative Film, Dead Pixel Repair, Intelligent Digital   Zoom

General

Operating Temp.

-20 °C – 45 °C (-4 °F – 113 °F)

Operating Humidity

Humidity 90% or Less (Non-condensing)

Power Supply

DC 12V ±15%

Power Consumption

Max. 6W

Net Dimension (mm)

Size: 120mm*80mm

Net Weight (kg)

0.5 kg
